Product Summary

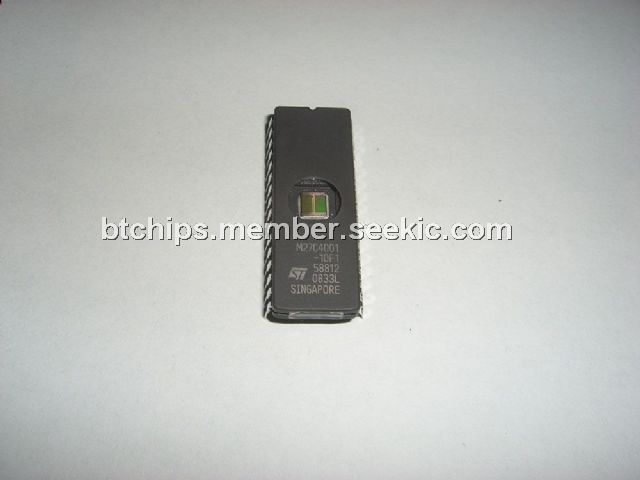

The M27C4001-10F1 is a 4 Mbit EPROM offered in the two ranges UV (ultra violet erase) and OTP (one time programmable). It is ideally suited for microprocessor systems requiring large programs and is organised as 524,288 by 8 bits.
Parametrics
Absolute maximum ratings: (1)Ambient Operating Temperature: –40 to 125 ℃; (2)Temperature Under Bias: –50 to 125 ℃; (3)Storage Temperature: –65 to 150 ℃; (4)Input or Output Voltage (except A9): –2 to 7 V; (5)Supply Voltage: –2 to 7 V; (6)A9 Voltage: –2 to 13.5 V; (7)Program Supply Voltage: –2 to 14 V.
Features
Features: (1)5V ± 10% supply voltage in read operation; (2)access time: 35ns; (3)low power consumption: Active Current 30mA at 5MHz, Standby Current 100mA; (4)programming voltage: 12.75V ± 0.25V; (5)programming time: 100μs/word; (6)electronic signature: Manufacturer Code: 20h, Device Code: 41h.

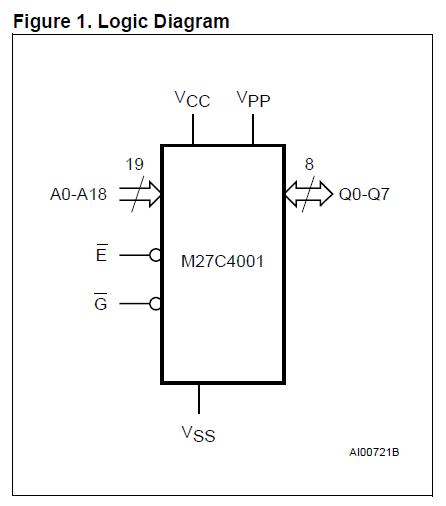

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 M27C4001-10F1 |
STMicroelectronics |
EPROM 4M (512Kx8) 100ns |
Data Sheet |
Negotiable |
|
||||
