Product Summary
The AM29F200BB-90SI is a 2 Mbit, 5.0 Volt-only Flash memory organized as 262,144 bytes or 131,072 words. The 8 bits of data appear on DQ0–DQ7; the 16 bits on DQ0–DQ15. The AM29F200BB-90SI is offered in 44-pin SO and 48-pin TSOP packages. The device is also available in Known Good Die (KGD) form. For more information, refer to publication number 21257. This device is designed to be programmed in-system with the standard system 5.0 volt VCC supply. A 12.0 volt VPP is not required for program or erase operations. The AM29F200BB-90SI can also be reprogrammed in standard EPROM programmers.
Parametrics
Absolute maximum ratings: (1) Storage Temperature: Plastic Packages:–65℃ to +150℃; (2) Ambient Temperature with Power Applied:–55℃ to +125℃; (3) Voltage with Respect to Ground: VCC: –2.0 V to +7.0 V; A9, OE#, and RESET#: –2.0 V to +12.5 V; All other pins: –0.5 V to +7.0 V; (4) Output Short Circuit Current: 200 mA.
Features
Features: (1) 5.0 V for read and write operations; (2) Manufactured on 0.32 μm process technology; (3) High performance; (4) Low power consumption; (5) Sector erase architecture; (6) Top or bottom boot block configurations available; (7) Embedded Algorithms; (8) Minimum 1,000,000 write/erase cycles guaranteed; (9) 20-year data retention at 125℃; (10) Compatible with JEDEC standards; (11) Erase Suspend/Erase Resume.

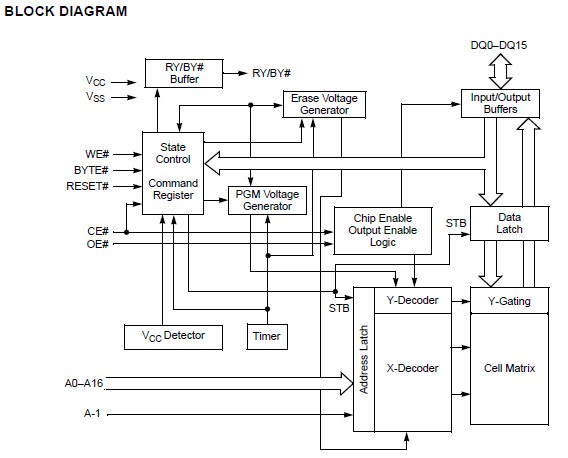

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |

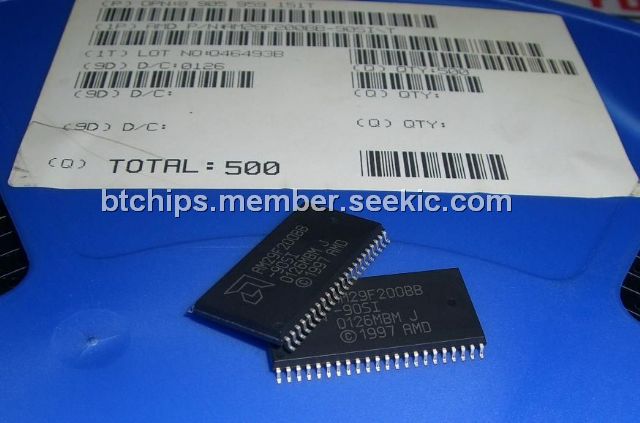

 AM29F200BB-90SI |
Other |
|
Data Sheet |
Negotiable |
|
||||
