Product Summary
The SS2B003 is designed for 2-phase bi-polar stepping.
Parametrics
Absolute maximum ratings: (1)power supply voltage: +40 V; (2)ditto: +18 V; (3)output current: ±2.0 A/phase; (4)junction temperature: +150 ℃; (5)storage temperature: -40 to +125 ℃; (6)operating case temp.: +80 ℃.
Features
Features: (1)Stepping motors can be driven at their top performance thanks to the constant current control of PWM mode; (2)This is a model that was designed with high reliability in mind for mounting on an automobile. This can stand operation in the temperature from -30 to 80 degrees C; (3)Also capable of micro-step driving; (4)Can be driven at 1.5A/phase output current.

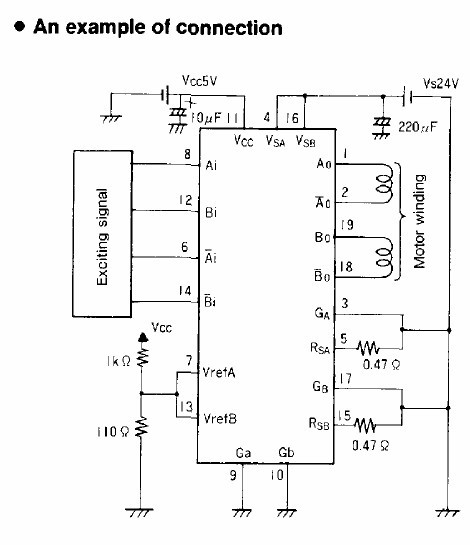

Diagrams

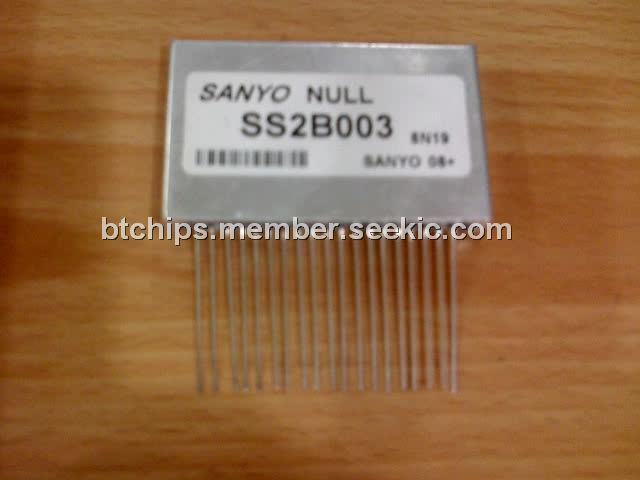

| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 SS2B003 |
Other |
|
Data Sheet |
Negotiable |
|
||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||
|
SS2B003 |
Other |
|
Data Sheet |
Negotiable |
|
||||
