Product Summary
The PH9038 is a Logic level N-channel enhancement mode Field-Effect Transistor (FET) in a plastic package using TrenchMOS technology. This product is designed and qualified for use in computing, communications, consumer and industrial applications only.
Parametrics
Absolute maximum ratings: (1)drain-source voltage: 30 V at 25 ℃ ≤ Tj ≤ 150 ℃; (2)drain-gate voltage: 30 V at 25 ℃ ≤ Tj ≤ 150 ℃; RGS = 20 kΩ; (3)gate-source voltage: -20 to 20 V; (4)drain current: 39 V at VGS = 10 V; Tj = 100 ℃, 63 A at VGS = 10 V; Tmb = 25 ℃; (5)peak drain current: 214 A at tp ≤ 10 μs; pulsed; Tmb = 25 ℃; (6)total power dissipation: 62.5 W at Tmb = 25 ℃; (7)storage temperature: -55 to 150 ℃; (8)junction temperature: -55 to 150 ℃.
Features
Features: (1)High efficiency due to low switching and conduction losses; (2)Suitable for logic level gate drive sources.

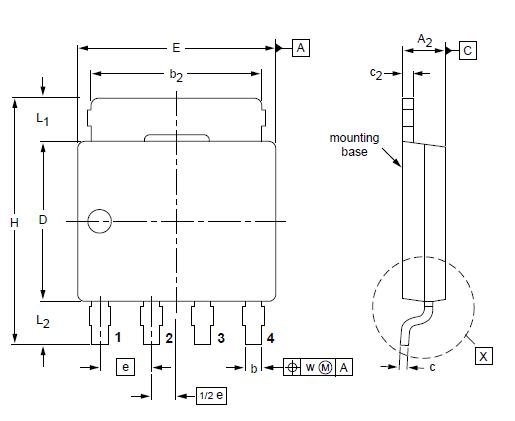

Diagrams
 |
