Product Summary
The K6T4008CIC-GB55 is a 512Kx8 bit Low Power CMOS Static RAM. It is fabricated by SAMSUNG’s advanced CMOS process technology. It supports various operating temperature ranges and various package types for user flexibility of system design.
Parametrics
Absolute maximum ratings: (1)Voltage on any pin relative to Vss: -0.5 to 7.0 V; (2)Voltage on Vcc supply relative to Vss: -0.5 to 7.0 V; (3)Power Dissipation: 1.0 W; (4)Storage temperature: -65 to 150 ℃; (5)Operating Temperature: 0 to 70 ℃; (6)Soldering temperature and time: 260℃, 10sec(Lead Only).
Features
Features: (1)Process Technology: TFT; (2)Organization: 512Kx8; (3)Power Supply Voltage: 4.5~5.5V; (4)Low Data Retention Voltage: 2V(Min); (5)Three state output and TTL Compatible; (6)Package Type: 32-DIP-600, 32-SOP-525, 32-TSOP2-400F/R.

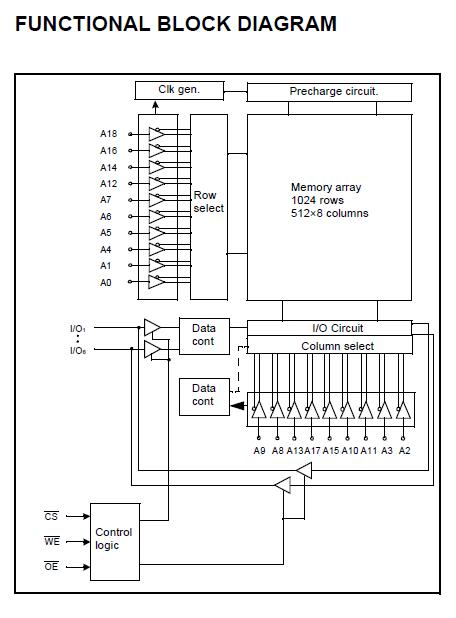

Diagrams
 |
